The Hidden Role of Ions in the Performance of RO and NF Systems

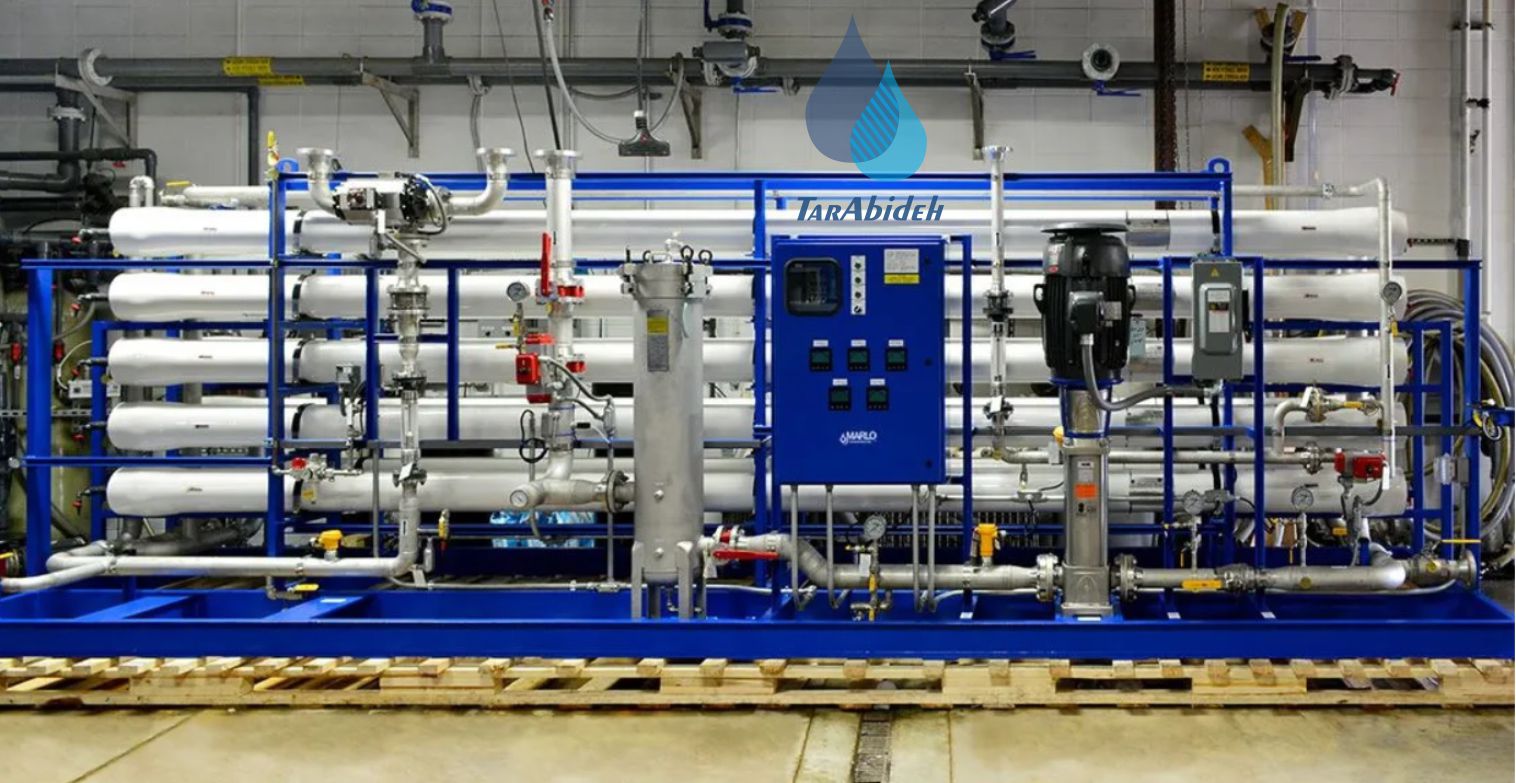

Reverse Osmosis (RO) and Nanofiltration (NF) are among the most advanced water treatment and seawater desalination technologies, widely applied in industries ranging from drinking water production to industrial wastewater reuse. In these processes, the selective separation of ions plays a key role in extending membrane lifespan and improving permeate quality. Ignoring the role of ions can lead to higher maintenance costs, reduced water quality, and even membrane damage.

Importance of Ion Control in RO and NF Systems

  • Preventing scaling

  • Reducing fouling

  • Protecting membranes from oxidative degradation

  • Extending membrane lifespan and reducing the need for cleaning and replacement

These factors directly impact the cost of RO membranes and the price of water filtration units.

Scaling Ions in RO and NF

Scaling occurs when sparingly soluble salts in the concentrate stream of RO or NF systems exceed their solubility limits and precipitate on the membrane surface. The higher the recovery rate, the greater the scaling risk. Common inorganic scales include:

  • Calcium carbonate (CaCO₃)

  • Calcium sulfate (CaSO₄)

  • Silica (SiO₂)

  • Other potential scale formers: Calcium fluoride (CaF₂), Barium sulfate (BaSO₄), Strontium sulfate (SrSO₄), and Calcium phosphate (Ca₃(PO₄)₂)

To evaluate scaling risk, the Ion Product (IPc) is compared with the Solubility Product Constant (Ksp). If IPc < Ksp, scaling control measures are generally unnecessary. Proper design, antiscalant selection, and pretreatment significantly reduce membrane replacement and operational costs.

Calcium Carbonate (CaCO₃)

  • Significance: The most common scaling compound in surface and groundwater. Its deposition decreases permeate flow and increases operating pressure.

  • Potential issue: Forms as a hard, white layer on the membrane. Solubility depends on pH; acid addition increases dissolution. The Stiff & Davis Index (S&DSI) for high-TDS waters and the Langelier Saturation Index (LSI) for low-TDS waters predict scaling potential.

  • Solution: Calcium carbonate is typically removed by acid cleaning (e.g., HCl at pH 1–2). This maintenance step is essential for extending membrane life and maintaining permeate quality.

Other Key Scaling Ions

  • Sulfates (CaSO₄, BaSO₄, SrSO₄): Among the hardest and most problematic deposits. Barium sulfate is nearly insoluble and accelerates scaling of calcium and strontium sulfates. Acid dosing (e.g., H₂SO₄) for carbonate control may worsen sulfate scaling.

  • Calcium Fluoride (CaF₂): Even at low concentrations (0.1 mg/L) with high calcium, it may precipitate.

  • Silica (SiO₂): Present in nearly all natural waters (1–100 mg/L). Can polymerize into insoluble gels; one of the most difficult scales to clean.

  • Calcium Phosphate (Ca₃(PO₄)₂): Common in municipal wastewater reuse; low solubility in neutral/alkaline pH but dissolves under acidic conditions.

Fouling Ions

  • Iron (Fe²⁺/Fe³⁺) and Manganese (Mn²⁺): Oxidize and form insoluble hydroxides that clog membranes. Common in well water; worsens oxidative damage.

  • Aluminum (Al³⁺): Originates from alum coagulants or silica interactions; even 50 ppb can reduce membrane performance.

  • Hydrogen sulfide (H₂S): In well water, oxidizes to sulfur or metal sulfides, causing severe fouling. Requires anaerobic pretreatment.

Oxidative Degradation Ions

  • Free chlorine and other oxidants (ozone, permanganate, H₂O₂): Widely used for disinfection but damage RO/NF membranes (FilmTec™ membranes tolerate only very low exposure). Even 1 ppm free chlorine may cause irreversible oxidation within 200–1000 hours. Residual chlorine must be removed (commonly with sodium metabisulfite, SMBS).

Ions Affecting Permeate Quality

  • Salts (cations & anions): RO membranes reject nearly all dissolved salts; NF membranes reject multivalent salts (90–98%) more than monovalent salts (20–80%).

  • Carbon dioxide (CO₂) / Bicarbonate (HCO₃⁻): CO₂ passes through membranes, raising permeate conductivity. Adjusting feed pH to ~8.2 converts CO₂ to bicarbonate, which RO can reject more effectively.

  • Boron: Naturally present in seawater; its passage through RO membranes can limit desalination performance, especially for drinking water standards.

Overall Importance of Ion Control

Effective ion control and pretreatment are critical for maximizing the performance and lifespan of RO/NF systems. Proper design reduces scaling, fouling, and oxidation, while optimizing permeate quality, recovery rates, and operational costs. Ignoring these factors results in reduced capacity, higher operating pressures, shortened membrane life, and frequent, costly cleanings.

Comprehensive feedwater analysis and continuous monitoring of parameters such as SDI, pH, and conductivity are essential for successful RO/NF operation.
